Application Area
The millimeter wave active holographic security & detection system is one of the most important high technology products under the “Safe City” Project of China Aerospace Science and Industry Cooperation. It is applied mainly for the high efficient personnel inspection in the airport, high speed railway, subway, large scale field and center, and government entrance etc. As a high performance instrument, it can output the 3D holographic images with automatic identification of concealed objects under clothes such as gun, knife, explosive, cash, document, optical disc, liquids, drugs, fossil. Cultural relic, ceramics, plastic and semiconductor chips etc. The millimeter wave active holographic security & detection system becomes the most potential marketing development products under the role of personality protection and crime prevention.
|
 |
System Characteristics
1) The system can output the 3D holographic images of human body with concealed objects. Meanwhile, it adopts the private protection technology to satisfy the requirement of human rights.
2) The check efficiency is higher than other systems, 300-500 persons per hour.
3) Nearly all types of material and all kinds of objects can be detected including weapons, standard and home-made explosives (sheet and bulk), drugs, liquids, gels, plastics, powders, metals, ceramics, documents and semiconductor chips etc.
4) The detection power is around several millimeter wave which is the one thousand of the CDMA mobile phone's radiation power, having neatly no harm to people's health.
5) Offers an upgradeable technology platform that can be enhanced through software updates as new threats and requirements emerge.
6) Optimized for aviation applications, and may also be suitable for select non-aviation environments.
|
System Compositions and Functions

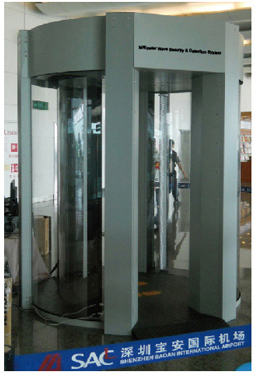

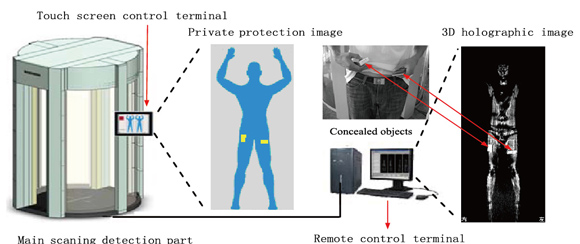

The millimeter wave active holographic security & detection system is composed of the main scanning detection part, the tough screen control terminal and remote control terminal. The under detect person enters into the system and stand up for about one second to finish the scan. After five seconds the private protection image can be displayed on the touch screen control terminal. If there are some forbidden object concealed under the clothes of the under check person. The system will automatically identify them with an explicit display. Besides these the remote control terminal can be selected as an auxiliary part, which can be used to output the image of 3D high resolution holographic images to show the detail information of the concealed objects.
The millimeter wave active holographic security & detection system can be combined with the X-ray detection system and be applied to the entrance of the airport, high speed railway, subway, large scale field and center, and government to realize a more strict security check |
Safe Technology
Leveraging safe radio waves, the millimeter wave active holographic security & detection system offers advanced personnel screeningwithout any health risks.
The millimeter wave active holographic security & detection system does not use X-rays or ionizing radiation.
The signals created by the millimeter wave active holographic security & detection system are thousands of times less powerful than other commercial radio frequency devices such as cell phones, wireless handsets and other standard household devices.
|
Typical configuration
Standard part：
The main scanning detection part: 1 Weight: 800kg;
Dimension: 1800mm X 2000mm X 2650mm;
Power: 110V/220V, 2000W.
The touch screen control terminal: 1;
The software kit for outputting private protection image and concealed object automatically identification: 1.
Selected part:
Remote control terminal: 1;
The software kit for outputting 3D high resolution holographic images and concealed object automatically identification: 1.
Maintenance
All the repair parts for the on site quickly repair can be customized.
The software kit for outputting private protection image and concealed object automatically identification, and the software kit outputting 3D high resolution holographic images and concealed object automatically identification can be updated all through the life without charge.
Delivery Time
The on site installation and operation training can be finished within 1 month since the contract signed date for the China mainland customer. For the foreign customer the time is within 3 months.
|
Technology Training and Support
The training of installment and hardware operation is provided.
The training of the software operation for the private protection image and concealed object automatically identification, the 3D high resolution holographic images and concealed object automatically identification is provided.
The training of manually identification for the concealed object based on the 3D high resolution holographic images is provided.
Quality Guarantee Time
The overall system is guaranteed with whole life repairment and the free charge repairment is within 1 year. |
 |

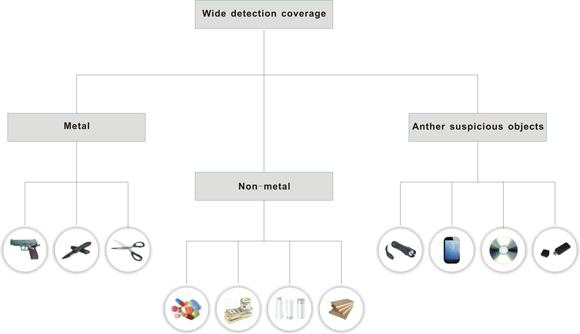

Wide detection coverage
The system can detect and accurately identify the objects of various materials and types,including suspicious or dangerous metal or non-metal objects
|
|
3D holographic detection image
The system can show a 3D holographic image
of human body and suspicious or dangerous
objects a person takes with him or her. |
 |
Accurate and automatic identificationofa suspicious or dangerous object
The system can identify a suspicious or dangerous
object accurately and automatically, and give a
clear display of the suspicious position. |
Protection of the privacy of human
body
Adopting the unique privacy protection technology
the system can function smoothly with the privacy
of human body protected reliably |
 |

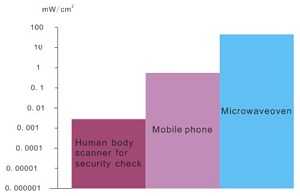

No harm of electromagnetic radiation
The system has a radiant power in milliwatt, which
is 1/1000 of the transmission power of an ordinary
mobile phone, relieving the worry about the adverse
effect on the human body.
Fast security check
The system features a fast security check, and
its checking efficiency is much higher than other
available systems. |
 |
|
|
