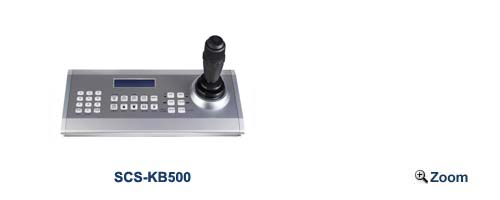

·SCS-KB500 Support Perco D/ P ,VISCA RS-422/RS485 protocol
communication、high speed、long distance communication control.
2 RS422/485 communication interface，longer distance，Max 2000m.
Preset 6-16 camera，like pan control、 lens position、white balance、image、pause.
| Joystick | 4-axis, zoom function, shuttle, jog in the knob, auto returning |
| Buttons | 28, multifunction, silicon + key stoke |
| Display | LCD, 2 lines of 20 characters, backlight |
| Dimensions | 355(L) × 150(W) ×155(H)mm |
| Weight: | 1.47kg (w/o Power supply);1.89 kg (with Power supply); 2.4kg (prepared for shipping) |
| Operating Temperature | -10°C - 70°C |
| Humidity | 30% - 90% (w/o condensation) |
| Adapter | DC12V / 1000mA |
| Power source | 12 VDC |
| Power consumption | 2.7 W (not loaded line) |
| Recommended adapter | AC100-240V-12VDC/1000mA |
| Connectors: | 1 x RJ-45 (RS-485) (for digital video recorders) |
| RS485(COM1)RS485 power output，2000M(for camera) | |
| RS485(COM2)RS485 two-way communication、standard 485 main line,1200M(for camera) | |
| USB-D | USB2.0(for computer) |
