Power Amplifier


Power levels matched to the most popular speakers used by entertainers
Optimized for maximum real-world headroom into 4 ohm and 8 ohm speaker systems
Inputs: XLR, 1/4" TRS and phono input connectors for compatibility with any source
Outputs: combo accepts, 1/4" (TS) plugs or Speakon 2-pole and 4-pole plugs (connects 2 poles only). Binding posts support all other speaker wiring systems
Minimum depth chassis (10.1"/257 mm) fits in compact, inexpensive effects racks
Detented gain controls for precise setting and matching of sensitivity
automatically protects the amplifier and loudspeakers from damage due to temperature rise or overdrive without shutting down the show
Front panel LEDs monitor Power, Signal and Clipping
Subwoofer/Satellite crossover built-in

.


 Model GX73
 Output Power(8Ω) 450W
 Output Power(8Ω) 600W
 Bridge Mono Mode(8Ω) 750W
 Bridge Mono Mode(4Ω) 950W
 THD 0.05%
 Frequency Response 20Hz-20KHz
 S/N Ratio 103dB
Weight 9kg
Height 3U
 Cooling Mode High/Low Automatism Cortrlo
Protection

DC safeguard/orerloading/startup
boot/strap short test





PDF DOCUMENT DOWNLOAD

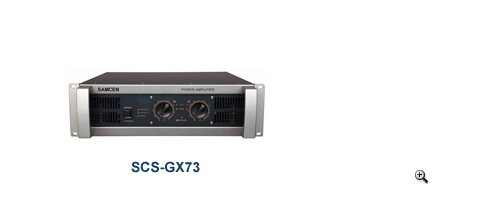

SCS-GX73
