Fully Digital Voting Unit



  1. New process, high gloss surface , anti- scratch , anti-oxidation, fade-proof, rub resistance, easy to clean, feel relieved to buy and feel at ease to employ.
  2. Novel appearance design and exquisite technical process enable the cabinet rank in the first line of international superior conference system
  3. 5 keys for voting and electing
  4. With the function of sign in
  5. Working with Samcen software for various kinds of voting
  6. First choice for large-scale & important conferences, such as International Conferences, Summits, Standing Committee
  7. With voice control ability,the voice can turn on microphone, it does not need to press the microphone button by hand
  8. Each microphone unit connects “hand in hand”, avoid the miscellaneous of circuit, easy to install and maintain. It is also benefit to add/cut down the microphone units
  9. Perfect sound quality, feedback eliminator function. When microphone is turned on, the built-in loudspeaker closes automatically to avoid feedback.
  10. Double microphones input(with clip-on microphone interface)
  11. Gooseneck condenser microphone supports “PnP”(Plug-and-Play), speaking with red ring indicator
  12. Microphones power controllable by main unit, the input voltage is 24V. It’s safety voltage.
  13. LCD display shows congressional information and status of equipment
  14. Working with the control system to realize the function of camera auto-tracking
  15. Chairman unit has priority to speak, it can close/ temporarily muting the delegate unit
  16. Super powers of anti-electromagnetic and mobile phone interference
  17. Microphone rods can be taken down during the recess, easy to maintain
  18. Humanization design. There is different length MIC rods to choose, it is suitable for different height attendances
  19. Without software, chairman can launch a simple vote:
    ①Sign in, elect 1/3, elect1/5, vote and score, the result will be displayed on LCD screen
  20. With SAMCEN professional software:
    ①Sign in, elect 1/3, elect1/5, vote and score
    ②The list of candidate and attendance, result of sign in, the bill title and details display on the main screen and the second screen
    ③Check the problem unit and find out who do not sign in
    ④Display the result of voting in the form of data or chart and print out

.

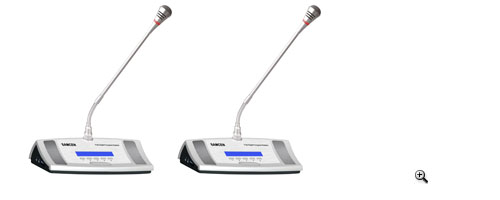

Model SCS-6190C/D
Power supply DC24V supplied by the control host
Intercommunication DIN 8-pole
Power consumption 3W
Loudspeaker power 1.2W
Transducer type Electret condenser
Directional pattern Cardioid
SNR > 80dB
Crosstalk attenuation at 1k Hz > 80dB
Distortion <0.10%
Frequency response 60~12KHz
Equivalent noise ≈20dB SPL
Maximum SPL 105dB(3% threshold)
Sensitivity -22dBv/Pa





PDF DOCUMENT DOWNLOAD

SCS-6190CD
