Fully Digital Voting Unit



  1. Gray black elegant and graceful design, with modern fashion
  2. 5 keys for voting and electing
  3. With the function of sign in
  4. Working with Samcen software for various kinds of voting
  5. Desktop is easy to move and install, even easy to increase or decrease microphone units
  6. With a big LCD display, it can show congressional information and status of equipment
  7. With voice control ability,the voice can turn on microphone, it does not need to press the microphone button by hand
  8. With hi-fi built-in loudspeaker, when microphone is turned on, the built-in loudspeaker closes automatically to avoid feedback.
  9. One Φ3.5mm stereo interface for earphone, and the volume can be adjusted
  10. One Φ3.5mm stereo interface for outside microphone
  11. System with function of automatic restoration, support “PnP”(Plug-and Play)
  12. Chairman unit has priority to speak, it can close/ temporarily muting the delegate unit
  13. Super powers of anti-electromagnetic and mobile phone interference
  14. Microphone rods can be taken down during the recess, easy to maintain
  15. Humanization design. There is different length MIC rods to choose, it is suitable for different height attendances
  16. Directional microphones with red indicator for turning on
  17. Connect to camera can realize the function of camera auto-tracking
  18. Without software, chairman can launch a simple vote:
    ①Sign in, elect 1/3, elect1/5, vote and score, the result will be displayed on LCD screen
  19. With SAMCEN professional software:
    ①Sign in, elect 1/3, elect1/5, vote and score
    ②The list of candidate and attendance, result of sign in, the bill title and details display on the main screen and the second screen
    ③Check the problem unit and find out who do not sign in
    ④Display the result of voting in the form of data or chart and print out

.

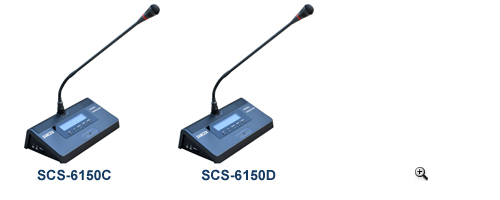

Model SCS-6150C/D
Power supply DC24V supplied by the control host
Intercommunication DIN 8-pole
Power consumption 3W
Loudspeaker power 1.2W
Transducer type Electret condenser
Directional pattern Cardioid
SNR > 80dB
Crosstalk attenuation at 1k Hz > 80dB
Distortion <0.10%
Frequency response 60~12KHz
Equivalent noise ≈20dB SPL
Maximum SPL 105dB(3% threshold)
Sensitivity -22dBv/Pa
