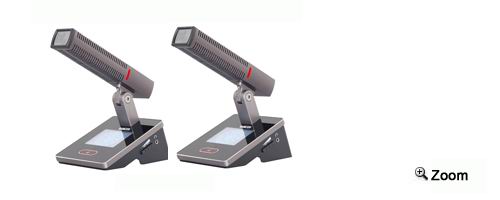

Fully Digital Discussion Unit


1.Dual backup design, top golden film high-fidelity microphones and the circular high-resolution screen. The notification and image are sent by the Center. The dynamic dial displays the time and the status of the statement.
2.The microphone can be turned on and off by tapping the screen, and a electronic designation card which is made out of magnetic bonding material, is put on the backside of it. Adding PC software function, using 4 in 2 out HD 3G-SDI seamless switching matrix to seamlessly switch the subtitles, banners and the others.


Transceiver

14 mm diameter gold-plated capacitive

Polar Pattern

Super cardioids

Frequency Response

20-20,000 Hz

Sensitivity

-36dB

Input Impedance

<200Ω

Maximum Input Sound Level

136 dB (1% T.H.D. @ 1kHz,0dB SPL=2x10 Pa)

Equivalent noise Level

16 dB

Phantom Power Requirements

48V DC

Cable

6-core line

Center

Mic Center / M / SDI

Dimensions

Microphone rod 200 x34.5 x 23

Pedestal Dimensions

138 x 98 x54





PDF DOCUMENT DOWNLOAD

SCS-6020CD
