1. Fully digital wireless transmission technology. System conforms to IEC61603, part 7
2. Radiates & distributes up to 32 channels of digital audio signal
3. Digitized audio ensures very high audio quality
4. Powerful compression techniques enable efficient, low-loss transmission.
5. Mounted on ceiling, wall, floor stand or optional tripod
6. Easily daisy-chained together to expand coverage
7. Angle of half intensity: ±22°

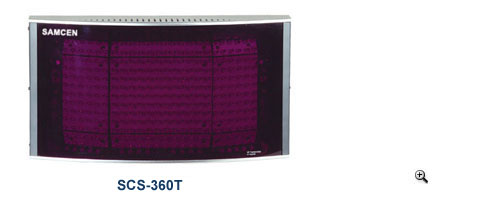

| Model | SCS-360T Digital IR Radiator Unit |
| Power supply | AC100-240V |
| Transmit power | 15W/25W/40W (selectable) |
| Average transmit angle | ±22° |
| RF input | Impedance :5kΩ,voitage:150mV-3V |
| Maximum covered distance | 30M(15W) |
| Automatically opened threshold | 50mV RF signal |
| Dimension | 430L×320W×95H(mm) |
| Weight | 7.8KG |
| Color | Purple |
