1. Fully digital wireless transmission technology. Receiver conforms to IEC61603, part 7
2. Pocket size wireless handheld unit
3. Accommodates up to 32 different languages
4. Channel selector and headphone connector
5. Power on/off switch and volume level control
6. Powered by (2 x AA) rechargeable batteries
7. No power used when headphone is disconnected
8. Aluminum carrying cases provided for receivers
9. 2-digit LCD display with battery and reception status indication
Model |

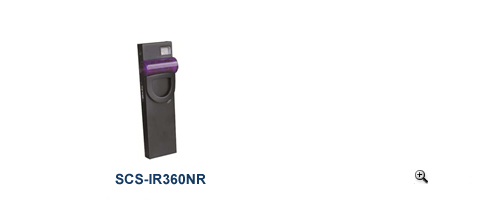

SCS-IR360NR |
Channel |
04/06/08/12/16/32 |
Receiving sensitivity |
-101dBM |
Angle of half sensitivity |
± 50° |
Headphone output level at 2.4V |
450 mVrms (Speech at maximum volume, 32 ohm headphone) |
Headphone output frequency range |
20 Hz to 10 kHz |
Headphone output impedance |
32 ohm |
Max. signal-to-noise ratio |
78 dB(A) |
Supply voltage |
1.8 to 3.6 V, nominal 2.4 V |
Power consumption at 2.4V (battery voltage) |
60 mA (speech at maximum volume, 32 ohm headphone) |
Power consumption (standby) |
60 mA |
Dimensions |
157×49×25mm |
Operating temperature range |
0-40 degree |
N.W |
150g without battery |
