.Wireless directional transmission avoided the radio disturbance and wiretapping.
.Automatic Level Control.(ALC)
.Adopt high frequency( 2M-8MHz) transmission it ensure anti-jamming frequency.
.Adopt phase-locked loop (PLL) technique to achieve stabile transmitting frequency.
.Equipped with 32 input audio connectors, it is able to input external audio signals.
.Equipped with 32 output audio connectors, it is able to output audio signals to different audio devices like amplifier and audio recorder.
.The test function can create 6 various frequency audio signals for system test.
.Level indicators can monitor the intensity of the input audio level directly.
.Alarm function can automatically send out the warning message to all the audio channels.
.Cover with metal material and earth well to ensure the 8000V antistatic performance.

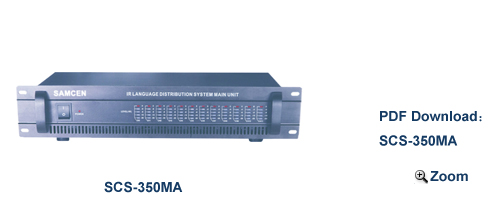

| Model | SCS-350MA IR Transmitter Unit |
| Power supply | 100-240V |
| Power consumption | 15W |
| Crystal | Crystal control |
| Modulation | PPL, narrow band |
| Carrier wave frequency | 2M20MHz (BAND4) |
| Pre-emphasis | 100μs |
| Deviation | ±6kHz (peak value ±7kHz) |
| Total harmonic distortion | <1% |
| SNR | >80dB |
| Frequency response | 6012KHz |
| Input Sensitivity | 50mV-1.5V |
| RF output | 2 BNC,100mV RMS |
| RF output impedance | 50Ω |
| Dimension | 430L×275W×90H(mm) |
| Weight | 6.8KG |
| Color | Gray |
①AUDIO INPUT CHANNEL CH0-CH11: The original audio can be from wire microphone or wire interpretation audio input equipment.
②
SIGNAL OUT 1~2 (TO IR Radiator)
③AUDIO OUTPUT CHANNEL CH0-CH11
④
INTERPRETER’S UNIT: Main unit can connect 1~11 interpreter unit by hand-in-hand connection.
⑤
AC POWER INPUT: 110/220VAC±5% 50/60Hz
