Digital Display System



  1. 256x64 VFD screen, for displaying identity information, support name and title turning or single screen display.
    Character display number is not restricted.
    The font can be adjusted freely.
    The position of displayed information can be adjusted freely.
    The 128x64 Dot matrix LED can display the name, logo, and other details.
    The system unit is powered by a controller, support 250 VFD desk units with extension power unit.
    The system unit supports IC card reading and software transmission for the data.
    Screen displayer supports both Chinese and English.



.


Front LCD type: 9” TFT 16:9
Resolution: 800x420, 262K color
Back LCD Resolution: 160x32
Dimension: 230x136x96 (mm)
Power Adaptor: 14V/500mA
Battery: 12V/4000mA
Interface: USB/Power Jack





PDF DOCUMENT DOWNLOAD

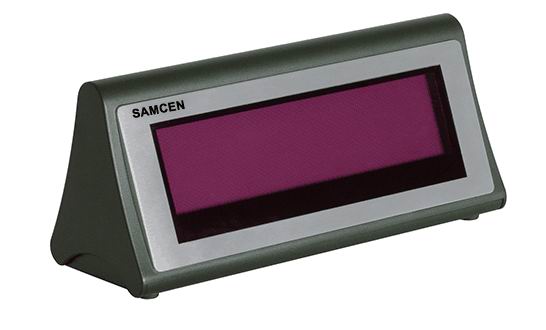

SCS-2020
