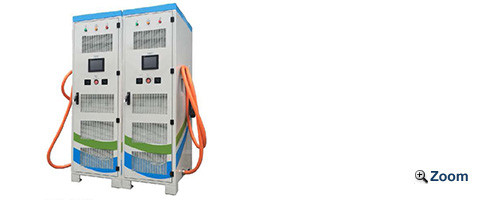

AC Charging DC360KW

• Waterproof, dustproof, convenient installation and debugging, comprehensive functions

• Can support double - port cyclic output charging

• High efficiency, high power density and high reliability

• Support multiple payment methods

• Small space occupation


Model SSCDC360KW
Power supply DC
Maximum output power 150KW
Maximum output current 63A
AC voltage 380 Va.c.±15%
Frequency 50/60Hz
Efficiency 97% Nominal output power
charge mode Single
Installation Posts / Walls
Ethernet TCP/IP
Wireless communications 3G/4G/WI-FI
Protection degree IP54/IP55
Operating temperature -20~+65℃
Storage temperature -40~+70℃
Relative humidity 5~95% without condensation
Noise No fan mute
HMI display 4.3”TFT vandal-proof touch screen
Indication of the sate of charge RGB LED beacons
Integration protocol OCPP 1.6
Shell material Metal
Dimensions 350*180*1600mm
Elevation 2000m
Safer Over current protection,Earth leakage protection,Lightning protection ,Emergency stop switch,Over temperature protection,over voltage and under pressure protection
