Products feature of the 30W/50W/80W/100W Solar Street light:
1. Energy saving and environment protection: compare with the traditional led street light, can save energy 70%. Light source has no mercury. No ultraviolet radiation, temperature of casing is low, can reduce the heat discharge. Life time can reach 5 years.
2. Integrated design of the system (radiator is the casing).adequate assurance the heat conduction of LED, heat dissipation, and the life time of the light.
3. Huge heat dissipate area can assurance the led working junction temperature <50°C.
4. Optics software analysis, make the light meet the demand of the street lighting standard.High bright led and high light efficiency. led lumen output >120lm/w. and lamp efficiency >85%
5. CRI>70%: the object can be clearer and more verisimilar.
6. More color can choose
7. High efficiency driver,PF≥0.98;THD≤10%
SPECIFICATIONS
Model |
SSL-030W/SS |
LED parameter |
Power |
30 W (50W/80W/100W) |
Lifespan |
50000 hours |
Color Temperature |
Pure White |
Lamp Efficiency |
>80% |
Driver Efficiency |
>89% |
Power Factor |
>0.98 |
THD |
<10% |
Color |
2700K-7000K |
CRI |
white≥75 / warm white≥70 |
Solar panel parameter |
Power |
90 W |
Material |
High-efficiency monocrystalline silicon |
Lifespan |
25 years |
Storage battery
parameter |
Capacity |
80AH 12V |
Material |
Pure ternary ,low internal resistance lithium battery |
Lifespan |
5 years |
Charging time |
Normal sunshine |
8-10 hours |
Work environment |
Temperature |
-30oC~60 oC |
Mounting height |
Height |
5m (6-8 m) |
Spacing distance |
Distance |
25-30 m |
Operating mode |
Mode |
IR sensor & light-dependent control |
Working Hours |
3-4 Rainy days |
Shell material |
Aluminum alloy for oxidation treatment |
IP Grade |
Certificate |
IP65、CE |
Warranty |
Time |
1 year |
Dimension and weight |
Battery size (mm) |
330 x 170 x 250mm |
Net weight |
24.5KG |
Light size(mm) |
650*236*117 |
Gross weight |
2.3KG |

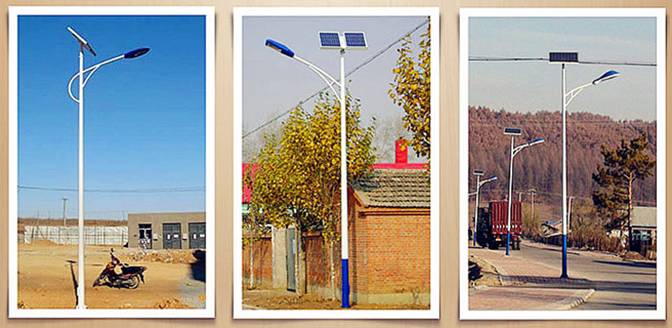

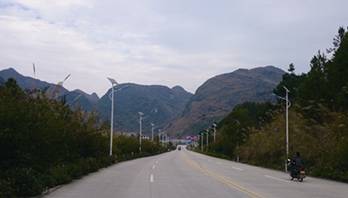

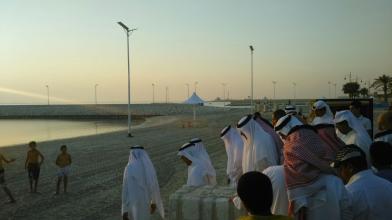

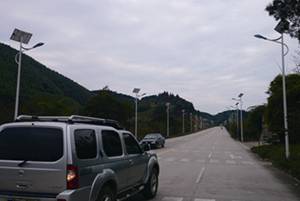

Difference Lighting:
